SX16 Searchlight Installation


  • Product Description

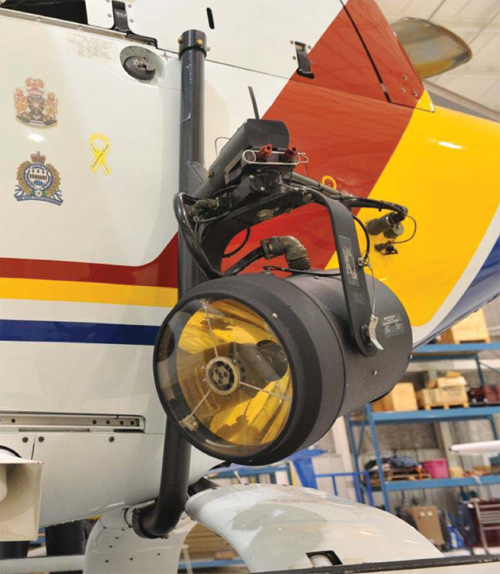

    The Spectrolab SX-16 Nightsun® is a high-intensity (30-40 million candlepower) searchlight located on the LH side of the helicopter. The light and gimbal are mounted using a quick release dovetail assembly for fast, tools free installation and removal.

    Searchlight

    Specifications

    • Vertical: 0° up to 47° down
    • Horizontal: 30° right to 90° left
    • Beam width (focus): 4° to 20°
    • Lamp power output: 1600 W/30 Million Cd
    • Voltage: 28 VDC

    Benefits

    Sorry, there is no information available for benefits at this time.

  • Technical Information

    Mass (kg)

    14.1 (Fixed Equipment)
    19.2 (Detachable Equipment, Light)
    33.3 (Total)

    Moment Arm (m)

    4.61 (Fixed Equipment)
    4.66 (Detachable Equipment, Light)
    4.64 (Total)

    ApprovalsCanada, USA
    Part Number

    120-901234

    Effect on Flight Performance

    Airspeed Limitation reduces VNE by 20 Kts.
    Speed reduction of 3kts per 1000 ft of altitude.
    Reduction of 100ft per minute for climb.

    Retrofit Information

    TCCA# SH03-15
    FAA# SR01701NY

    Supplied by Airbus Helicopters Canada
    Retrofit can be performed at customer maintenance shop

    Notes

    • SLASS available as an option when installed in conjunction with a FLIR of the 8000 series.
    • Requires an Exterior Mount to be installed in accordance with F.A.A. SR01701NY.
    • Searchlight range of motion limited when emergency or permanent floats are installed.
  • Documentation

Airbus Helicopters reserves the right to make configuration and data changes at any time without notice. The facts and figures contained in this document and expressed in good faith do not constitute any offer or contract with Airbus Helicopters.

EC120

Order Information

Orders can be placed by:
Email: HCareSupport.Canada@airbus.com
Telephone: 905-871-7772
Fax: 905-871-3599

Airbus Helicopters Canada
1100 Gilmore Road
P.O. Box 250
Fort Erie, ON L2A 5M9
