• Product Description

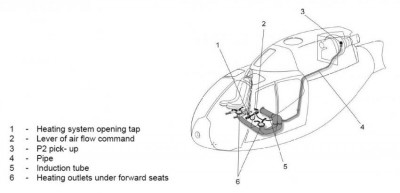

    The Improved Heating System provides additional hot air from under the cabin floor for additional heating capability. Heat ducts direct warm air to two outlets in the cabin floor under the pilot and co-pilot seats. Heating is either open or closed via air flow command located between the forward seats. Cabin temperature is regulated by adjusting the standard heating system.

    This installation consists of:

    • Additional P2 lines (engine compressor supply line)
    • Airflow control valve
    • Diffuser and under-floor heating duct
    • Two cabin outlets



    Benefits

    • Additional heating capabilities for customers operating in extreme weather conditions
    • Enhanced comfort for the pilot and passengers
  • Technical Information

    Mass (kg)

    9.2

    Moment Arm (m)

    3.2

    ApprovalsCanada, USA
    MaterialComposites (various)
    Part Number

    120-701014

    Operational Limitations

    Please refer to FMS (Flight Manual Supplement)

    Retrofit Information

    TCCA# SH02-39
    FAA# SR01892NY

    Supplied by Airbus Helicopters Canada
    Retrofit can be performed at customer’s facility

    Notes

    Sorry, there are no notes available at this time.

  • Documentation

Airbus Helicopters reserves the right to make configuration and data changes at any time without notice. The facts and figures contained in this document and expressed in good faith do not constitute any offer or contract with Airbus Helicopters.
