EC145-T2‘The H145 is perfectly suited for the most demanding multi-purpose mission requirements’

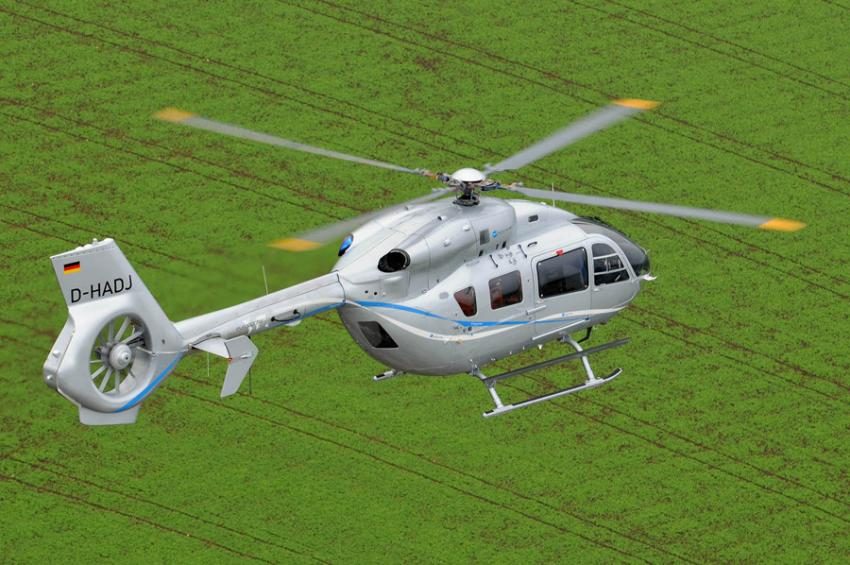

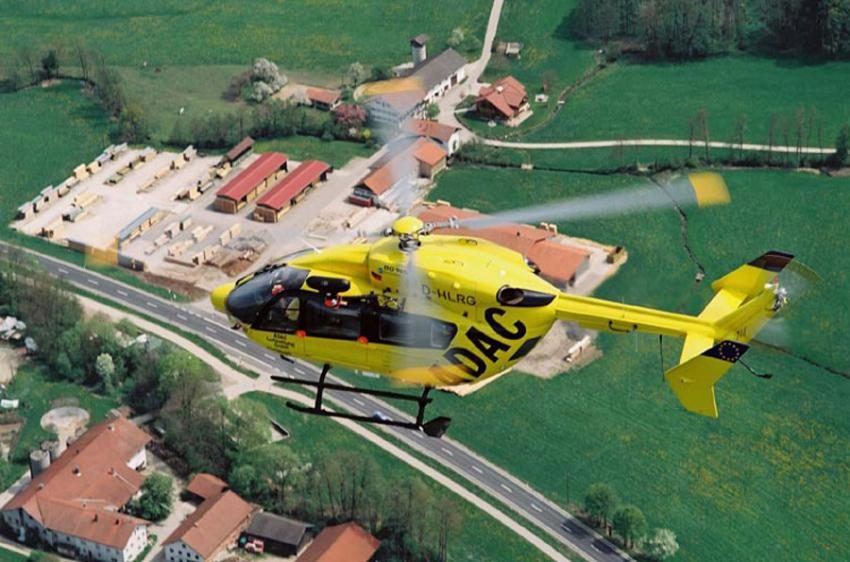

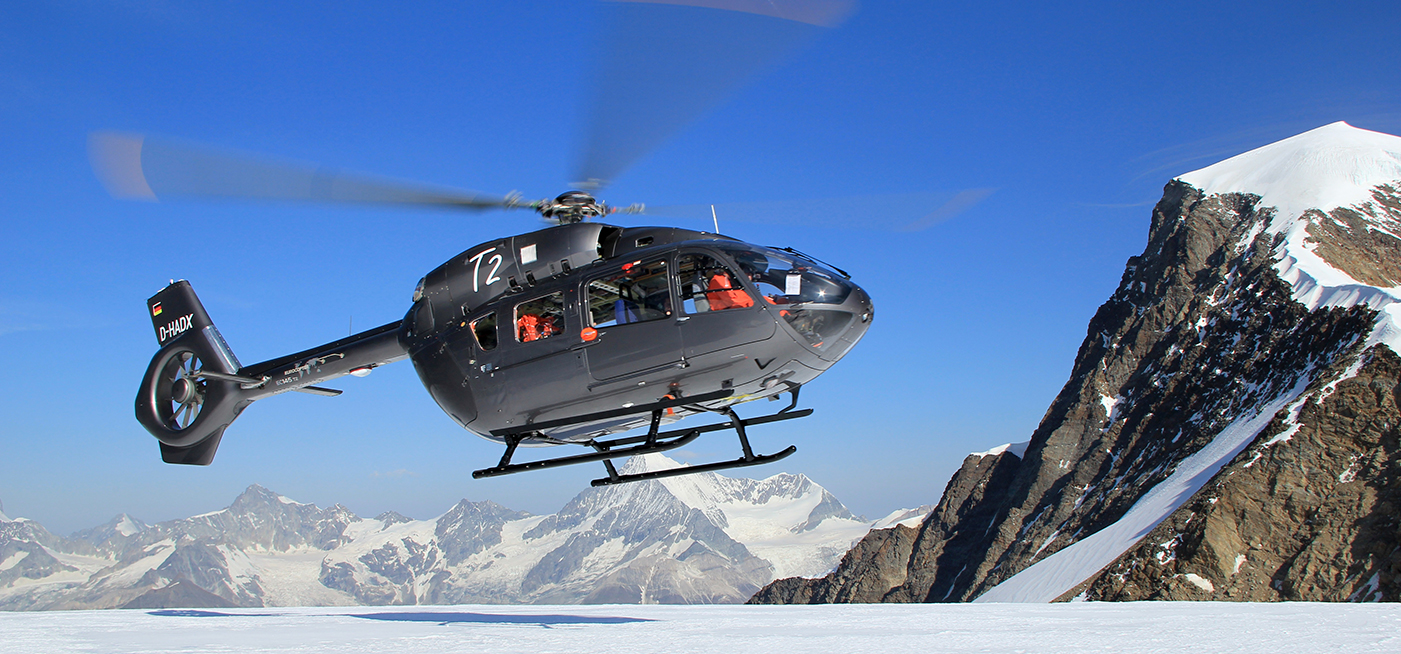

The H145 (EC145 T2), the newest 4-ton class twin engine, multi-purpose helicopter in the Airbus Helicopters product range, is the latest evolution of the EC145/BK117 family. This family of aircraft has seen more than 800 deliveries worldwide and has accumulated more than 3 million flight hours.

Extended Mission Capabilities

EC145 T2 ExtendedSharing many basic features with the EC145, the H145 will be able to be equipped with the same optional equipment to carry out missions such as EMS, Law Enforcement, SAR, Business Aviation, oil and gas and utility.

The H145 comes with a 4-axis autopilot, optimizing the capabilities of the aircraft for over-water day and night SAR missions. This innovative autopilot, was developed specifically for helicopters, is already available and in operation on the H155, H175 and H225.

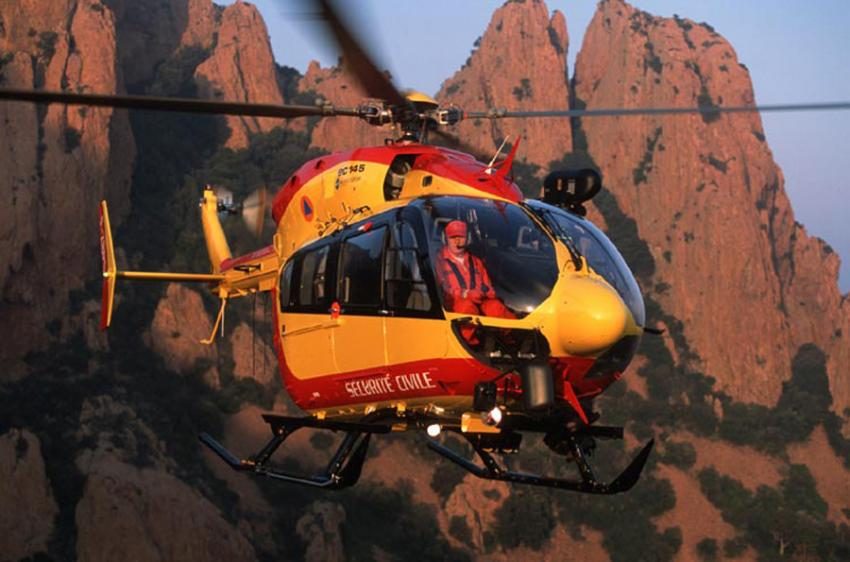

EC145

‘The Ultimate Multi-role Helicopter’

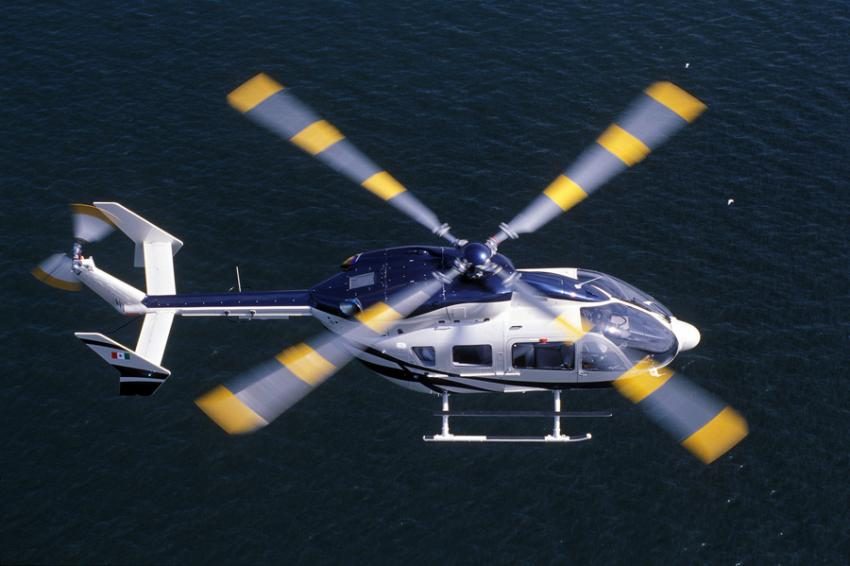

In operations on land and at sea, the EC145 is at the top of its class in the medium-sized, twin-engine helicopter category. With up to 12 seats for pilots and passengers, this multi-mission helicopter combines Airbus Helicopters’ latest developments such as an advanced cockpit design, avionics and a sophisticated electrical system. The EC145 offers a proven hingeless rotor system with a monolithic titanium hub and enhanced rotor blades, which ensure low noise and vibration levels.

The EC145 is equipped with two Safran Arriel 1E2 engines which provide outstanding performance and vital power reserves even in one engine- inoperative (OEI) scenarios. EC145 CabinThe EC145’s twin-engine reliability is enhanced by a completely separate fuel system, a tandem hydraulic system, a dual electrical system and redundant lubrication for the main transmission. Further built-in safety aspects include energy-absorbing fuselage, seats and crash-resistant fuel cells. In addition, the EC145 allows for Category A operations up to performance class 1 according to JAR-OPS 3.

Compared to other helicopters in its class, the EC145 offers a significantly larger cabin featuring excellent outside visibility for pilots, crew and passengers, a roomy cabin with no partitions, center or door
posts and unrivaled side and rear loading capability.

Downloads:

Characteristics

EC145

H145

Cabin & cargo compartment
Floor area
50.77 ft3 / 4.72 m2
Volume 213.15 ft3 / 6.04 m3
Engine 2 Safran ARRIEL 2E turboshaft
Take-off power (TOP)
894 shp / 907 ch / 667 kW
Maximum continuous power (MCP)
771 shp / 782 ch / 575 kW
One engine inoperative (OEI), 30 sec power 1,072 shp / 1,088 ch / 800 kW
One engine inoperative (OEI), 2 min power 1,038 shp / 1,054 ch / 775 kW
Note: Thermodynamic limits per engine at SL, ISA
Weight
Maximum take-off weight without/with external load 8,047 lb / 3,650 kg
Empty weight, wet (baseline aircraft definition)
4,231 lb / 1,919 kg
Useful load (baseline aircraft definition) * 3,816 lb / 1,731 kg
Payload and/or fuel 3,640 lb / 1,651 kg
Sling load (single hook)
3,307 lb / 1,500 kg
* Approximately 30kg more useful load than a comparable EC145 configuration
Single-engine performance (OEI)
HOGE (OEI 2 min-power), SL, ISA
6,755 lb / 3,064 kg
HOGE (OEI 2 min-power), SL, ISA +20°C 6,601 lb / 2,994 kg
CAT A, VTOL, SL, ISA 8,047 lb / 3,650 kg
CAT A, VTOL, SL, ISA +20°C 8,047 lb / 3,650 kg
Two-engine performance (AEO)
Gross weight 8,047 lb / 3,650 kg
Maximum speed VNE 145 kts / 268 km/h
Maximum cruising speed VH 134 kts / 248 km/h
Recommended cruising speed 134 kts / 248 km/h
Hover ceiling IGE (TOP), (4 ft AGL), ISA 12,795 ft / 3,900 m
Hover ceiling IGE (TOP), (4 ft AGL), ISA+20
10,000 ft / 3,048 m
Hover ceiling OGE (TOP), ISA 9,843 ft / 3,000 m
Hover ceiling OGE (TOP), ISA+20 8,000 ft / 2,484 m
Range at recommended cruise speed
(no reserve) with standard fuel tank
358 NM / 663 km
Endurance at 70 KIAS
(no reserve) with standard fuel tank
3h37min

The data provided is being validated. Final confirmation of the data after completion of the flight test program.

Technology

EC145The H145 combines Airbus Helicopters' breakthrough technologies, including an advanced cockpit design, modern avionics, 4-axis autopilot and a Fenestron® tail rotor, with the rugged and proven designs of the BK117 family, such as the main rotor system. Thanks to its outstanding roomy and versatile cabin, this aircraft can accommodate up to 12 seats and can be configured for either one or two pilots.

Powerful

The H145 is equipped with two powerful and modern Safran
Arriel 2E engines, EC145 Engineeach controlled by a dual channel Full Authority Digital Engine Control (FADEC), which, in combination with the aircraft’s lifting system, provide outstanding All Engine Operative (AEO) performance. The One Engine Inoperative (OEI) performance of this new aircraft version have been significantly improved. The H145 is capable of Category A operations up to Class 1 and Class 2 performance, according to EASA OPS.

The H145 sets the limits even higher:

  • Fenestron: A proven Airbus Helicopters tail rotor innovation with an anti-torque-device and redundant hydraulics. It is the ideal solution for 360° approachability at all times and the highest protection for those on the ground. The Fenestron allows for increased operations in dense urban areas and confined spaces (helipad, forest), where foreign object damage is a high risk.
  • Most advanced Human Machine Interface with innovative Airbus Helicopters avionics suite - 4-axis autopilot allows pilots to concentrate fully on their mission - New unique displays and alerting system concept for high awareness in all situations.
  • Full Authority Digital Engine Control (FADEC) The Safran Arriel 2E engine-model brings modernity, with a new dual-channel FADEC generation, to enhance safety and decrease the pilot’s workload.

Environment Friendly

Equipped with the Fenestron®, which significantly reduces sound levels, the H145 is the quietest helicopter in its class. The all-composite structure and aerodynamic geometry of this tail boom also contribute to an optimized fuel consumption.

An Elegant Shape

With a refined interior and a pleasing exterior shape thanks to the Fenestron tail rotor, the H145 provides even the most demanding customers with solutions tailored to their specific needs.

EC145

EC145 TechnologyThe EC145 is equipped with two powerful and reliable Safran Arriel 1E2 engines which provide outstanding performance and vital power reserves in OEI scenarios. The use of the variable rotor speed and torque matching system (VARTOMS), known from the predecessor model BK117 C- 1, enhances overall flying comfort, and makes the EC145 the quietest helicopter in its class at 6.7 decibels below ICAO noise level.

In addition to environmental and economical aspects, the rotor system together with high TBO gearbox and airframe components offer both low maintenance costs and high in service time for the helicopter due to the minimal scheduled maintenance required.

The EC145 is the answer to an increasing demand for a multi-role helicopter. Modern and versatile, the EC145, with its large range of optional equipment, provides outstanding flexibility for all types of missions.

Excellent Design Features

  • Exceptional comfort and cabin size
  • Unrivaled side loading (no door posts) and rear loading capability
  • Excellent field of view to the front, left/right hand sides and rear
  • Energy-absorbing passenger and crew seats
  • Energy-absorbing skid-type landing gear
  • Energy-absorbing airframe
  • Crash-resistant fuel system
  • Redundant design of all major systems, such as flight control actuators, lubrication, cooling, hydraulic system and electrical system
  • Cockpit designed for minimum pilot workload
  • Hingeless main rotor (system Boelkow) for excellent maneuverability
  • Single interchangeability of main rotor blades
  • Four glass and carbon fiber reinforced main rotor blades with erosion
    protection strip
  • Semi-rigid tail rotor with 2 twisted glass fiber reinforced blades of new technology with erosion protection strip
  • Simple and rapid exchange of different types of mission equipment
EC145 Cabin Size



EC145 Passenger

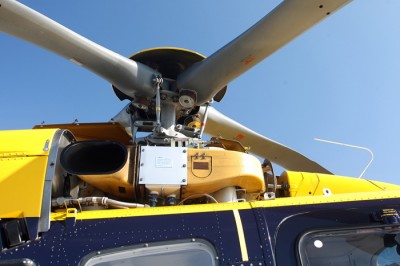

EC145 Rotor

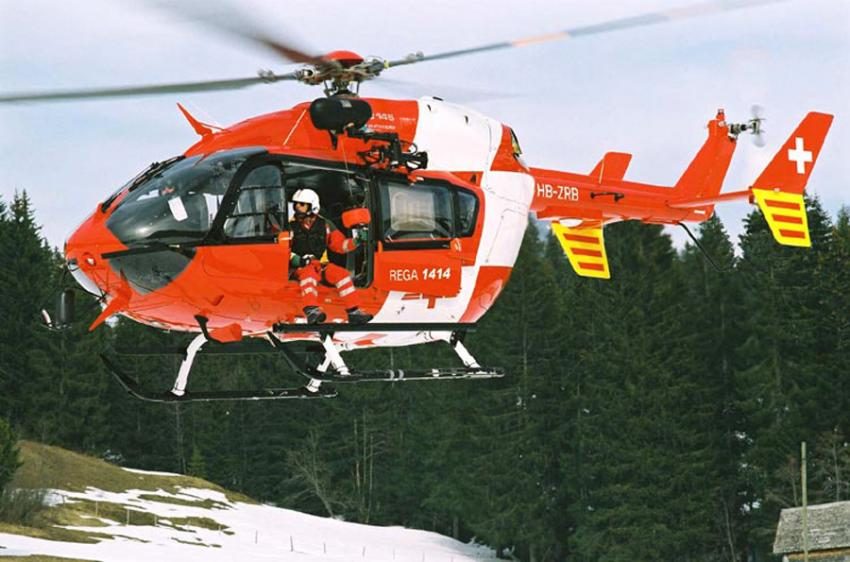

EMS and SAR

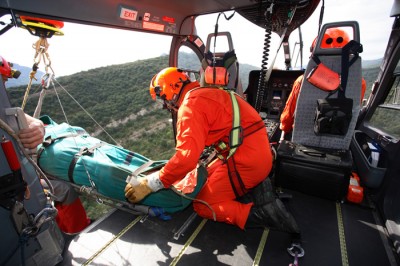

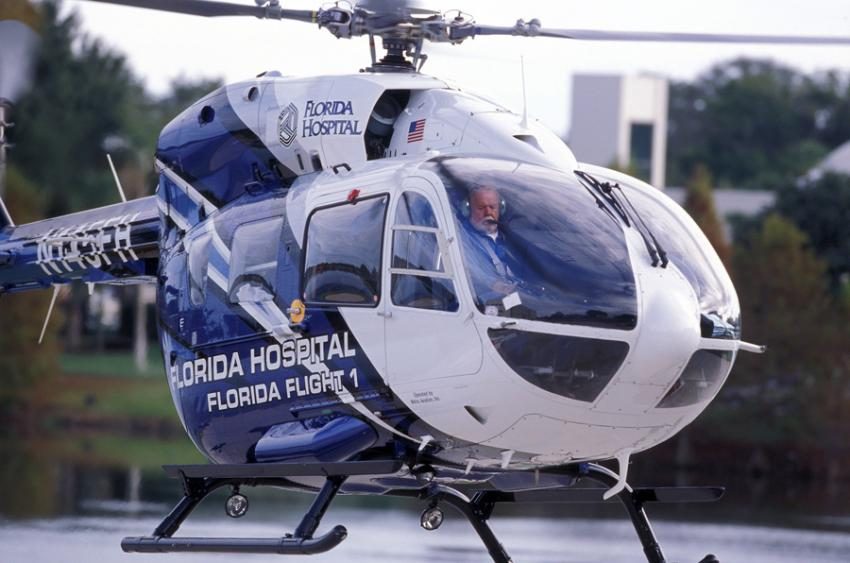

EC145 EMSThe EC145 offers unmatched visibility and an incredibly discrete noise level—6.7 dbA below ICAO limits—for effective EMS operations. The state-of the-art, IFR-equipped glass cockpit avionics display is compatible with night-vision goggles (NVGs), so the EC145 is fully functional both night and day. The EC145 is also particularly adapted to primary EMS missions and flying intensive care units. Its unobstructed cabin has room for two stretchers, three seated persons and all the necessary medical equipment. Its rear clamshell doors allow easy straight-in loading of the stretchers, and extra-wide side doors provide effortless access for attendants and crew. Different configurations of the EMS interior - each tailored
to the specific range of missions - are available to fulfill
customers’ requirements.

Oil and Gas

EC145 Oil & GasThe EC145 ensures exceptional reliability and performance parameters in extreme weather conditions. It is equipped with two powerful Safran Arriel 1E2 turbine that provide an optimal level of safety in one-engine-inoperative (OEI) scenarios. Furthermore, the high-set main rotor and tail rotor improve safety on the platform. In the oil and gas configuration, the EC145 offers comfortable seating for up to nine passengers plus a pilot. Passengers can easily access the cabin via extra-wide sliding doors on either side or clamshell doors at the back.

Utility

EC145 UtilityThe EC145 is the best value solution for utility missions. The EC145’s unobstructed main cabin is easily reconfigurable to maximize mission flexibility and the helicopter’s sliding side and rear clamshell doors optimize access to the cabin. The high-set main and tail rotor provide unparalleled safety and access, allowing the loading and unloading of passengers or cargo while the rotors are running. Extensive use of new, lightweight manufacturing materials and extensive system modularity simplifies maintenance, reducing lifetime ownership costs and logistic requirements. The EC145 was selected by the U.S. Army as new multi-mission Light Utility Helicopter (LUH), called the UH-72A Lakota.

Law Enforcement

EC145 PoliceIn order to meet the continuously growing responsibilities and tasks of public service missions, the EC145 can be equipped with the most modern and experienced police equipment on the market. Fast and reliable, the EC145 can rapidly transport up to 11 officers to the scene of an accident. The EC145 is fully NVG-compatible.

Passenger Transportation

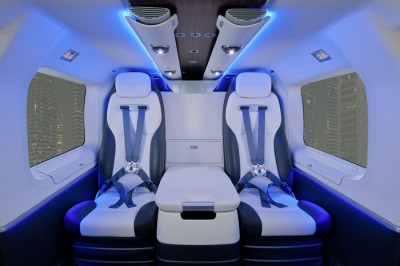

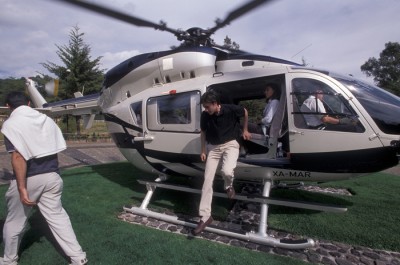

EC145 TransportationThe EC145 is the only helicopter in its category to combine a roomy cabin and excellent window visibility, providing exceptional passenger comfort. This aircraft offers high rotor clearance and large luggage clamshell doors, and extra-thick interior insulation and special flooring that damps out any residual vibration. The EC145, with its sporty yet elegant atmosphere, invites passengers onboard via large sliding doors that provide easy cabin access. Inside, passengers discover the stylish comfort of the cabin and its various amenities while they admire the view. With its low noise and vibration levels, corporate and private helicopter users alike can work or relax in the living space.
