Aft Bench Seat

Product Description

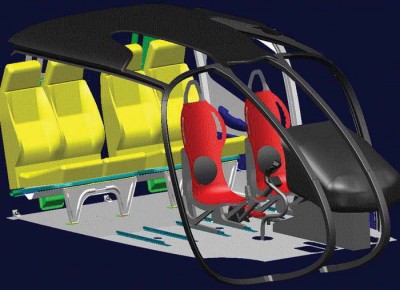

The Aft Bench Seat installation offers an alternative four-passenger seat installation in place of the standard helicopter aft energy absorbing seats, allowing for a significant weight reduction.

Aft Bench Seat

Benefits

  • Weight reduction
  • Fold-up seats can increase floor space for carrying internal loads

Technical Information

Mass (kg)

37.4 (Equipment Installed)
-64.1 (Equipment Removed)
-26.7 (Total)

Moment Arm (m)

2.62 (Equipment Installed)
2.43 (Equipment Removed)
2.16 (Total)

ApprovalsCanada
MaterialAluminum Alloy, Steel
Part Number

130-700614

Retrofit Information

TCCA# SH04-28

Supplied by Airbus Helicopters Canada
Retrofit can be performed at customer’s facility

Notes

  • This installation does not comply with JAR27-562 and JAR27-785 (a), (b) and (j) requirements for dynamic energy attenuating seats.
  • Includes seat cushions without upholstery.

Airbus Helicopters reserves the right to make configuration and data changes at any time without notice. The facts and figures contained in this document and expressed in good faith do not constitute any offer or contract with Airbus Helicopters.
