Litter Kit


  • Product Description

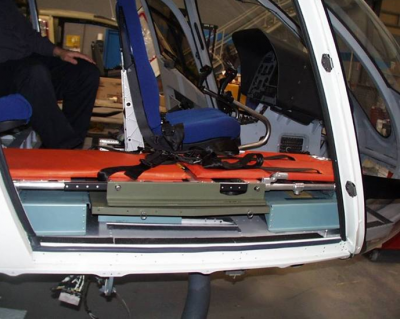

    The Litter Kit allows the helicopter to transport one medical patient on a secured stretcher. The Litter Kit installation is located on the right hand side of the cabin floor. The fixed provisions are compatible with both the 7 and 8 place interiors.



    Litter Kit

    Benefits

    • Quick installation for medical evacuation
    • Increases multipurpose platform role
  • Technical Information

    Mass (kg)

    29.3 (Equipment Added)
    -23.1 (Removed, 2 seats for 7 place interior)
    -35.1 (Removed, 3 seats for 8 place interior)
    6.2 (Total, 7 place interior)
    -5.8 (Total, 8 place interior)

    Moment Arm (m)

    1.51 (Equipment Added)
    1.96 (Removed, 2 seats for 7 place interior)
    1.78 (Removed, 3 seats for 8 place interior)
    -0.17 (Total, 7 place interior)
    3.14 (Total, 8 place interior)

    ApprovalsCanada, USA
    MaterialAluminum alloy frame and installation provisions
    Part Number

    130-200034

    Retrofit Information

    TCCA# SH02-45
    FAA# SR02176NY

    Supplied by Airbus Helicopters Canada
    Retrofit can be performed at customer’s facility

    Notes

    • Patient orientation is “head forward.”
    • Not compatible with dual controls
  • Documentation

Airbus Helicopters reserves the right to make configuration and data changes at any time without notice. The facts and figures contained in this document and expressed in good faith do not constitute any offer or contract with Airbus Helicopters.
