7 Place Interior


  • Product Description

    The 7 Place Interior consists of a composite-structure 2 Place Forward Passenger Seat on the right-hand side of the cockpit as well as, the Left-hand Pilot Installation. The seat is installed on fixed rails on the cabin floor and is removable by use of quick-release fasteners. A four point seatbelt and shoulder harness is provided for each front occupant of the seating arrangement. The pilot-in-command position is moved from the right to the left side, along with all associated flight controls and other cockpit controls and instrumentation. Provisions for optional dual pilot controls are included in this installation. Battery Relocation is highly recommended for the 7 Place Interior.

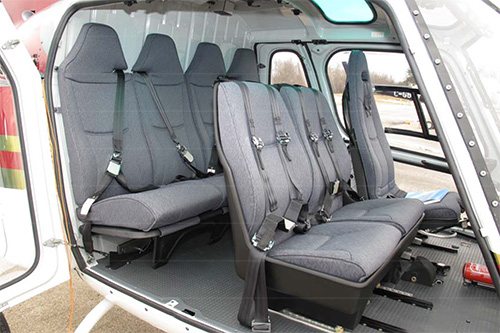

    7 Place Interior

    7 Place Interior AS350

    Benefits

    • Increased passenger capacity
    • Increased visibility of load during cargo sling operations
    • Improved cabin space for additional options
  • Technical Information

    Mass (kg)

    12.25 (2 Place Forward Passenger Seat)
    See SH96-31 (Battery Relocation)
    See SH96-32 (Left-hand Pilot)

    Moment Arm (m)

    1.57 (2 Place Forward Passenger Seat)
    See SH96-31 (Battery Relocation)
    See SH96-32 (Left-hand Pilot)

    ApprovalsTCCA, FAA, EASA, ANAC, DGAC
    Part Number

    350-200624 (2 Place Forward Passenger Seat)
    350-700324 / 355-700324 (Battery Relocation)

    Contact your Airbus Helicopters Canada Representative for Left-hand Pilot part numbers (based on specific ipanel requirements).

    Operational Limitations

    Two place seat detachable provisions are not compatible with dual controls.

    Minimum crew consists of one pilot in the left hand seat.

    Retrofit Information

    TCCA SH96-39 (2 Place Forward Passenger Seat)
    EASA.IM.R.S.01022 (2 Place Forward Passenger Seat)
    FAA SR00430NY (2 Place Forward Passenger Seat)
    ANAC (Mexico) 9703-04 (2 Place Forward Passenger Seat)
    DGAC (Brazil) IA-230/2013 (2 Place Forward Passenger Seat)

    See SH96-31 (Battery Relocation)
    See SH96-32 (Left-hand Pilot)

    Notes

    • Requires the installation of the Left-hand Pilot (I.A.W. TCCA SH96-32).
    • The dual bench rails are compatible with the extended EA seat rails.
    • Seat covers are not included and are to be provided and certified by the installer.
    • The front bench seat is the same width as the rear bench seats (16”).
  • Documentation

Airbus Helicopters reserves the right to make configuration and data changes at any time without notice. The facts and figures contained in this document and expressed in good faith do not constitute any offer or contract with Airbus Helicopters.
