High Visibility Doors

Product Description

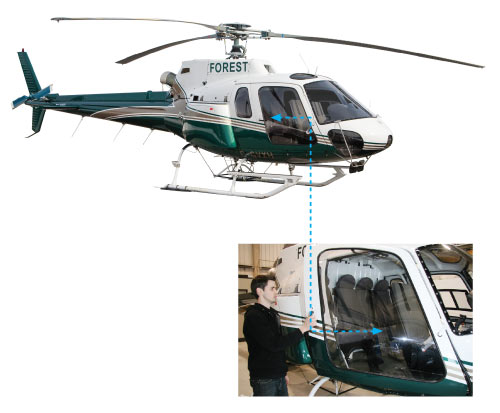

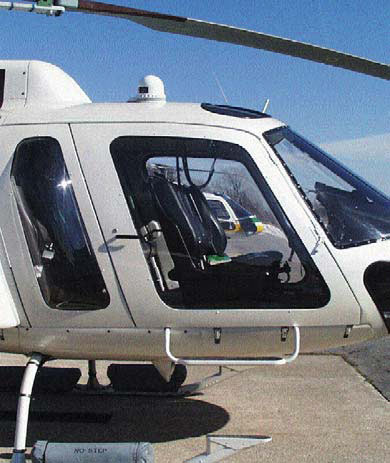

The High Visibility Doors provide pilots and passengers with an increased viewing field through the extra large windows. The fully composite doorframe replaces the standard door(s) and can be installed individually or in any combination, including all four doors. The high visibility doors are ideal for law enforcement, tourism and utility missions.

High Visibility Doors

High Visibility Doors

Benefits

  • Increases visibility for pilots and passengers
  • No change to operational limitations
  • Increases passenger comfort
  • Same safety features as a standard door (latching, locking and emergency egress)
  • No obstruction for camera, video equipment or goggles

Technical Information

Mass (kg)

11.9 (Forward LH door)
11.9 (Forward RH door)
5.80 (Rear LH Door)
5.80 (Rear RH Door)

Moment Arm (m)

1.62 (Forward LH Door)
1.62 (Forward RH Door)
2.43 (Rear LH Door)
2.43 (Rear RH Door)

ApprovalsCanada, USA, EASA Countries
MaterialFiberglass, Prepreg Frame and Acrylic Window
Part Number

350-202014-03 - LH Forward
350-202014-04 - RH Forward
350-202014-05 - LH Rear
350-202014-06 - RH Rear

Incompatibility

Not compatible with sliding doors

Retrofit Information

TCCA# SH00-1, SH15-7 (N, NP)
FAA# SR01107NY
EASA.IM.R.S.01195

Supplied by Airbus Helicopters Canada
Retrofit can be performed at customer’s facility

Notes

  • Finished in primer: must be painted after installation.
  • Color Availability: Gloss Beige, Gloss Grey & Black.

Airbus Helicopters reserves the right to make configuration and data changes at any time without notice. The facts and figures contained in this document and expressed in good faith do not constitute any offer or contract with Airbus Helicopters.
