Rear Maintenance Steps

Product Description

The Rear Maintenance Steps improve access to the engine and transmission decks for routine maintenance and inspection. They are mounted on the landing gears aft cross tube and include an anti slip surface.

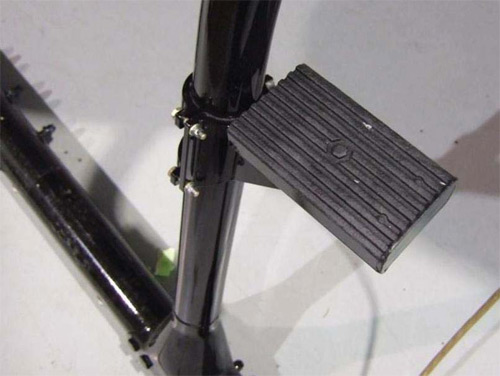

Rear Steps

Rear Steps

Benefits

  • Large contact surface with anti-slip finish for safety
  • Improved access to engine and transmission
  • Kit includes both left and right step assembly

Technical Information

Mass (kg)

2.2 (LH and RH installed)

Moment Arm (m)

4.22 (LH and RH installed)

ApprovalsCanada, EASA, USA, Mexico, Brazil
MaterialAluminum Alloy
Part Number

350-500604 (LH and RH)
350-500614 (LH only)
350-500624 (RH only)

Retrofit Information

TCCA# SH98-43

FAA# SR00916NY

EASA# 10057054

DGAC Mexico# IA-301/2015

ANAC# 2015S09-03

Supplied by Airbus Helicopters Canada
Retrofit can be performed at customer’s facility

Notes

  • For use on ground only.

Airbus Helicopters reserves the right to make configuration and data changes at any time without notice. The facts and figures contained in this document and expressed in good faith do not constitute any offer or contract with Airbus Helicopters.
