Left Hand Litter


  • Product Description

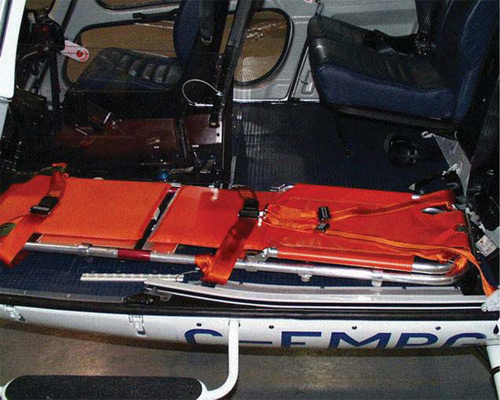

    The LH Litter allows for transportation of an injured person on a portable litter. The litter is secured to the LH cabin floor, with the LH forward seat removed and the LH aft seats in the stowed position.

    Left Hand Litter

    Benefits

    • Fixed and detachable provisions can be sold separately
    • Fleet interchangeable detachable provisions
    • Quick mission changes possible
    • Single seats can be stored in the side baggage compartment for remote area usage
    • If Airbus Helicopters Canada cargo pods are installed, removed single seat can be stored in one of the pods
  • Technical Information

    Mass (kg)

    0.51 (Fixed Provisions)
    12.8 (Detachable Provisions)
    -10.6 (Removed Items, LH Seat)
    2.67 (Total)

    Moment Arm (m)

    0.98 (Fixed Provisions)
    1.54 (Detachable Provisions)
    1.61 (Removed Items, LH Seat)
    1.15 (Total)

    ApprovalsCanada, USA, Europe, Brazil, Mexico
    Part Number

    350-200034-01 (Fixed)
    350-200034-03 (Detachable)

    Retrofit Information

    TCCA# SH94-29

    FAA# SR00407NY, SR00406NY

    Brazil 1999S08-14, 1999S08-15, 1999S08-16

    EASA# 10038250

    DGAC Mexico# IA-299-2015

    Supplied by Airbus Helicopters Canada
    Retrofit can be performed at customer’s facility

    Notes

    • Also available as a RH litter (with a different P/N) for an aircraft equipped in LH pilot configuration.
    • AS355 information available upon request.
    • Check with Airbus Helicopters Canada for compatibility with your aircraft.
  • Documentation

Airbus Helicopters reserves the right to make configuration and data changes at any time without notice. The facts and figures contained in this document and expressed in good faith do not constitute any offer or contract with Airbus Helicopters.
