Back Seat Document Holders

Product Description

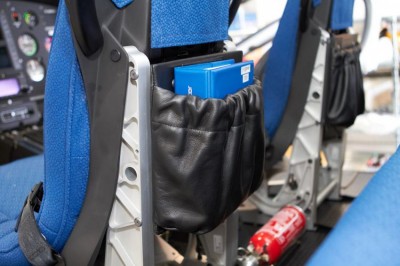

The Back Seat Document Holders provide discreet leather pockets mounted on the rear of the energy absorbing seats. Due to its elastic design the Document Holders are not bulky, however can easily accommodate larger documents, such as Flight Manuals, or store up to approx. 3.2 kg. Available in a standard highly robust black, grey or blue to match the approved leather seat covers.

Benefits

  • Provides space for stowing documents and small personal items for pilots and crew
  • Light weight and compact
  • Elastic design prevents holder contents from moving during flight, thus enhancing safety
  • Easy to install

Technical Information

Mass (kg)

1.0

Moment Arm (m)

1.62

ApprovalsCanada, FAA, EASA, Mexico, Brazil
Part Number

350-701074 (Installation kit)
350-701084-01 (Black document holder)
350-701084-41 (Blue document holder)
350-701084-42 (Grey document holder)

Retrofit Information

TCCA# SH12-28
FAA# SR03572NY
EASA# 10056823
DGAC Mexico# IA-355/2016
ANAC Brazil# 2016S09-07

Supplied by Airbus Helicopters Canada
Retrofit can be performed at customer's facility

Notes

  • Only available on energy absorbing seats.

Airbus Helicopters reserves the right to make configuration and data changes at any time without notice. The facts and figures contained in this document and expressed in good faith do not constitute any offer or contract with Airbus Helicopters.
